Yamaha STAGEPAS 200 2-Way 8" 130W Portable PA System with Bluetooth (Open Box)

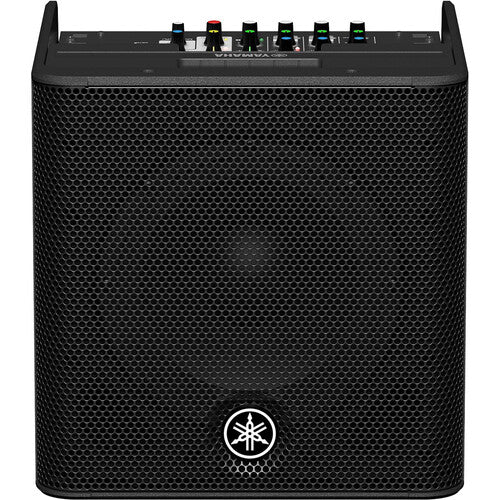

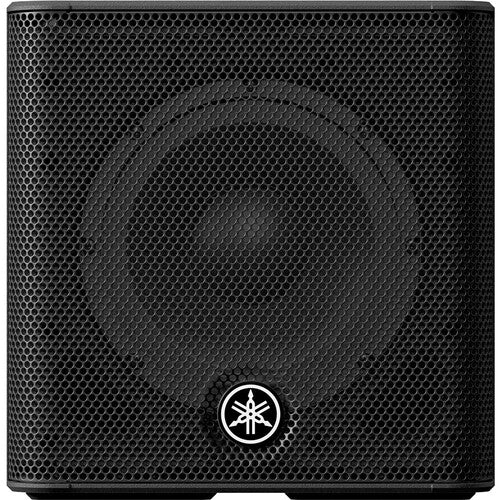

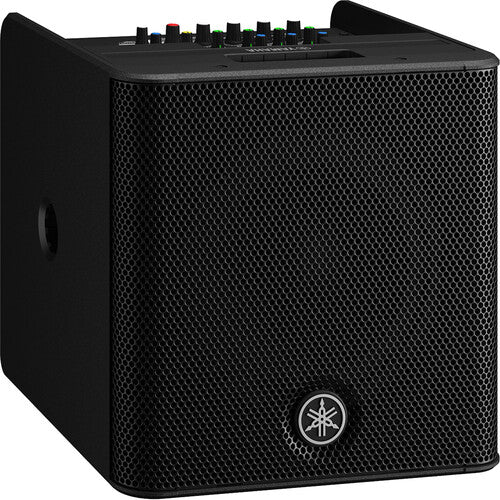

With high-quality sound and advanced mixing capabilities in a minimalist design, the Yamaha STAGEPAS 200 is a premium, portable PA system with a fast and intuitive operation of live sound features and remarkable overall performance. This lightweight, yet powerful PA packs a punch with its 130W Class-D amplifiers that drive the 8" woofer and 1" compression driver. The drivers are arranged in a coaxial configuration, which provides excellent sound reproduction.

The mixer is compatible with dynamic and condenser microphones, line level signals, and Hi-Z instruments. Each channel features a single knob EQ/Preset for dialing in your best sound. The mixer also includes reverb, chorus and delay effects as well as a feedback suppressor for mitigating microphone feedback. Stream audio from your favorite smartphone or tablet, thanks to the integrated Bluetooth receiver that also allows the PA to be controlled remotely via the STAGEPAS app. For flexibility in placement, the rubber feet disconnect from the bottom of the speaker and can be used as 30/60° stands. The STAGEPAS 200 includes a power cord.

At a Glance

• 180W (HF: 30W + LF: 150W) Class-D amplifier
• 1.4” HF + 8” LF high-quality coaxial compression driver
• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
• BTR-STP200 battery included
• Optional CASE-STP200 carry case for convenient carrying

Sound that Astounds

Featuring a high-quality coaxial transducer design, the STAGEPAS 200 is capable of delivering best-in-class sound pressure, precise phase response, and a very natural dispersion of high frequencies. Adopting some of the same expertise used in our high-end professional audio gear, this mighty yet minimalistic powerhouse will stun your audience with the full dynamic range and response of your performance.

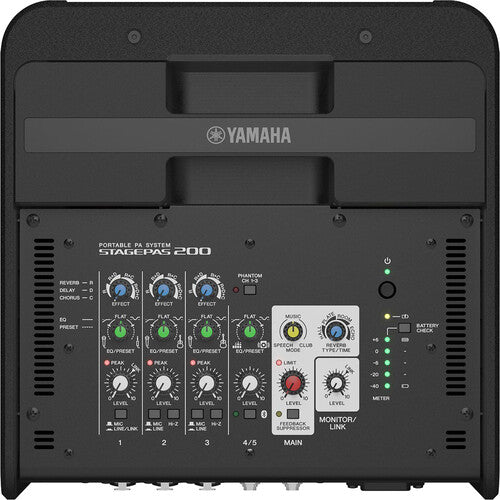

Mix it Up

The STAGEPAS 200 puts a strong emphasis on its all-in-one designation offering all the connectivity, performance functions, and mixing capability you would ever need for small-scale duo or trio performances, all packed into a compact 300 mm cube-style cabinet. Equipped with a digital mixer that can be controlled remotely for up to 5 channels, 3 mic preamps, and a comprehensive range of practical functions you'll be thankful to have at your disposal, the STAGEPAS 200 is without peer in the compact all-in-one PA market.

Dial In. Vibe Out

The simple, intuitive operation of the STAGEPAS 200 makes dialing in your ideal sound a painless, even enjoyable process. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound, while channels 2-3 feature microphone simulators included in the 1-knob EQ/preset that can add instantaneous warmth and beauty to acoustic guitars.

Smooth Operator

• The STAGEPAS 200 comes equipped with adaptive functions that help alleviate anxiety about your sound, allowing you to focus on performing your absolute best.
• The onboard Priority Ducker automatically reduces background music or secondary signals when inputs from a primary microphone or a specific sound source is detected. Additionally, the Intelligent Feedback Suppressor function eliminates unpleasant feedback that can occur when a microphone picks up sound from a speaker, ensuring a more comfortable sonic experience for both you and your audience.

Convenient Creative Control

The STAGEPAS Controller app, for both iOS and Android devices, gives you real-time remote control of both volume and EQ. Additionally, the app gives you precise control over such functions as EQ, Reverb, Compressor, Microphone simulators, Ducker, etc. maximizing the capabilities of your STAGEPAS 200. You can save these settings in scenes stored on the app to be recalled any time for consistent sound and reduced setup time.

Nonstop Performance

Compatible with a large-capacity lithium-ion battery allowing up to 10 hours of continuous operation, the STAGEPAS 200 reliably delivers excellent performance even in remote locations where no power source is available. The BTR-STP200 battery is available separately.

Bluetooth Connectivity

Bluetooth functionality enables wireless connection for easy audio playback via smartphones and tablets. It also allows use of the dedicated STAGEPAS Controller app for mixer control and adjustment.

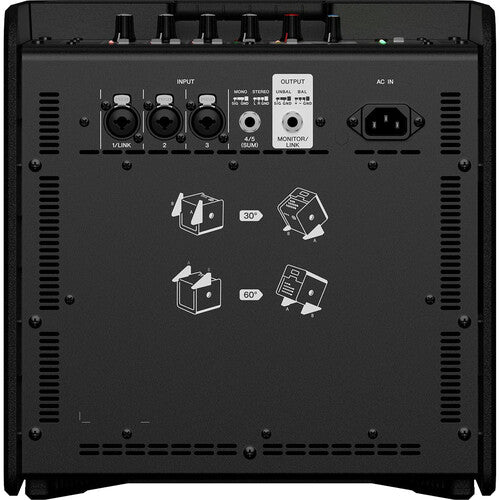

The Right Direction

The rubber stand on the base of the cabinet lets you incline the unit at a 30/60° tilt to adapt to your chosen performance environment or application. This allows placement of the STAGEPAS 200 facing the audience as a fill speaker, or towards the performers when used as a floor monitor.

Mounting Possibilities

The bottom of the cabinet houses a 1.4" diameter pole mounting socket, allowing the STAGEPAS 200 to be mounted on a speaker stand or used in an installation with a subwoofer using a distance rod.
